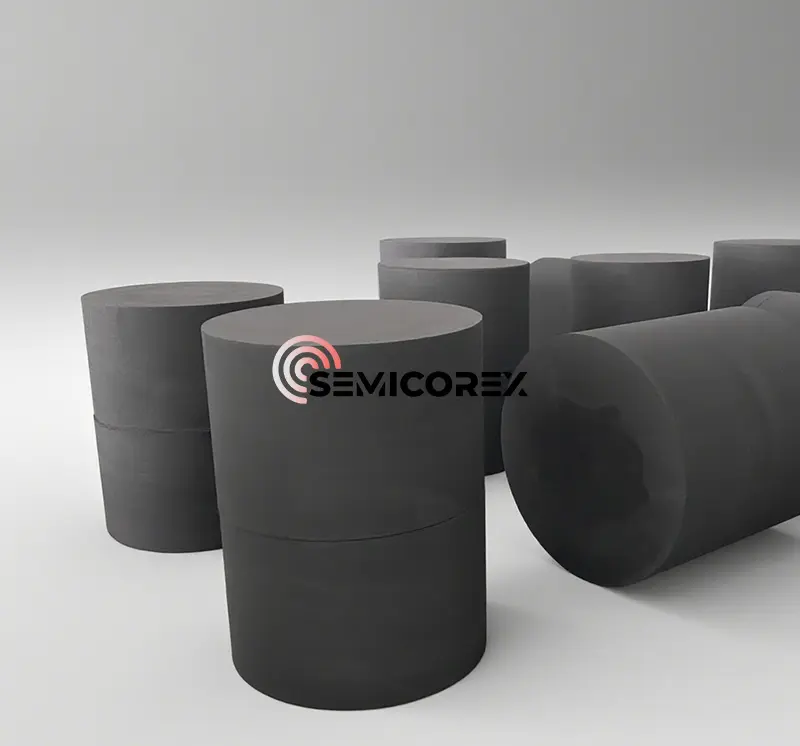

Carbon/graphite material molding essentially involves increasing the density of the powder mixture and ensuring close contact between the aggregate and binder to produce a green body with a desired size, morphology, and minimal machining allowance. The four main molding methods are extrusion, compression molding, vibration molding, and isostatic pressing. Common carbon/graphite materials on the market (for example, charcoal used for household fires) are mostly formed using hot extrusion and compression molding (cold or hot). Isostatic pressing offers superior molding performance.


The principle of isostatic pressing is based on Pascal's law: pressure applied to a medium (liquid or gas) in a sealed container is uniformly distributed in all directions, with the pressure on the surface being proportional to the surface area. Isostatic pressing involves placing a sample, enclosed in a sealed container, within a high-pressure cylinder. Leveraging the incompressible nature of the liquid medium and its ability to uniformly transmit pressure, the sample is uniformly pressed from all directions. When the fluid is injected into the cylinder, the pressure is evenly transmitted in all directions according to the principles of fluid mechanics. The sample in the cylinder is then subjected to uniform pressure in all directions.


Due to the isostatic pressing method, isostatically pressed graphite exhibits excellent isotropy, with properties independent of shape, size, or sampling direction. The material possesses a dense microstructure, high mechanical strength, high surface hardness, and oxidation resistance. Strong performance and high-temperature resistance; the material has excellent thermal shock resistance and is less susceptible to cracking under rapid cooling and heating conditions.

1. Isotropy

Different molding methods result in different properties in different directions. This is primarily reflected in resistivity, thermal conductivity, mechanical properties, and thermal expansion coefficient. The general measurement method is to sample the product perpendicular to and horizontally from the pressure surface, measure the properties separately, and then divide the smallest value by the largest value to obtain the isotropy ratio.

Traditional carbon/graphite products exhibit significant anisotropy, i.e., the properties of the product are different in the directions perpendicular to and horizontal to the pressure surface. The corresponding difference in performance is generally greater than 1:1.1, hence the term anisotropy. In many cases, this difference is fully exploited, and the greater the difference, the better. Examples include graphite electrodes for steelmaking and brushes for motors. Many applications, such as EDM and single-crystal silicon thermal field applications, increasingly require carbon/graphite products to exhibit isotropy (with an orientation ratio within the 1:1.05 range).


2. Large Dimensions

The market is increasingly demanding larger product sizes. For example, single-crystal silicon products have grown from 6- and 8-inch sizes to 12-inch sizes. The size of graphite materials used in thermal fields is also increasing. This is also increasing. Similar trends are seen in other related industries. Graphite for EDM, continuous casting, and nuclear reactors also requires large-scale products. This is difficult to achieve using molding and extrusion methods. The primary problem with large-scale product production is calcination cracking, and the larger the product, the higher the chance of calcination cracking.


3. Fine Structure

As a structural material, it requires high physical and chemical properties. On the one hand, the finer the particle size of the carbon particles that make up the carbon/graphite material, the denser its texture and the higher its mechanical strength.


Isostatically pressed graphite is widely used in semiconductor manufacturing processes. It is used in graphite components for the hot zone of single crystal growth furnaces, such as crucibles, heaters, flow guides, and insulation covers; and in graphite components used in epitaxial processes.




View as

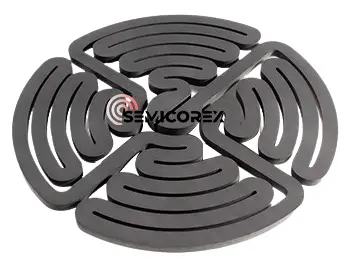

Pemanas batang grafit

Pemanas batang grafit

Pemanas batang grafit semikorex adalah elemen pemanas berkinerja tinggi yang dirancang untuk generasi suhu tinggi yang seragam di dalam tungku vakum. Pilih Semicorex untuk keahliannya dalam solusi grafit yang direkayasa dengan presisi, memberikan stabilitas termal yang unggul dan kinerja jangka panjang yang disesuaikan dengan kebutuhan industri Anda.*

Baca selengkapnyamengirimkan permintaan
Batang elektroda grafit

Batang elektroda grafit

Batang elektroda grafit semikorex adalah komponen grafit dengan kemurnian tinggi yang digunakan sebagai elemen pemanasan inti dalam tungku vakum. Pilih Semicorex untuk kualitas material yang tidak tertandingi, pemesinan presisi, dan kinerja yang andal di lingkungan vakum suhu tinggi.*

Baca selengkapnyamengirimkan permintaan

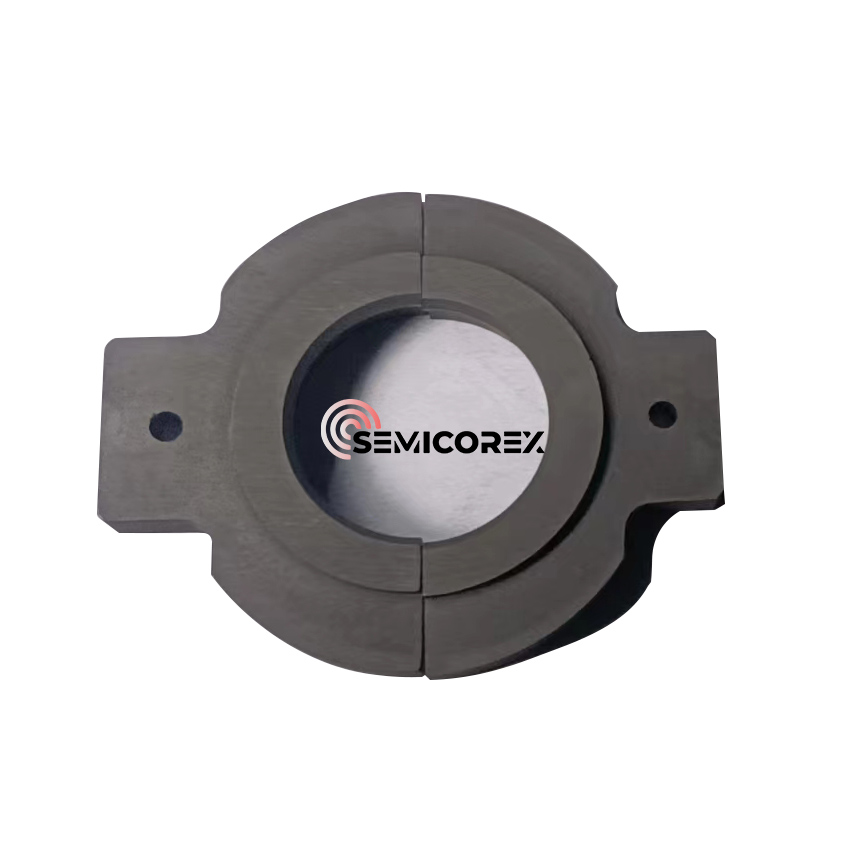

Pelat atas grafit

Pelat atas grafit

Pelat atas grafit semikorex adalah perlengkapan rekayasa presisi yang dirancang untuk penanganan botol kaca panas yang aman dan andal di lingkungan manufaktur suhu tinggi. Pilih Semicorex untuk kualitas materi yang tak tertandingi, kemampuan pemesinan khusus, dan kinerja yang konsisten yang dipercaya oleh produsen kaca terkemuka di seluruh dunia.*

Baca selengkapnyamengirimkan permintaan

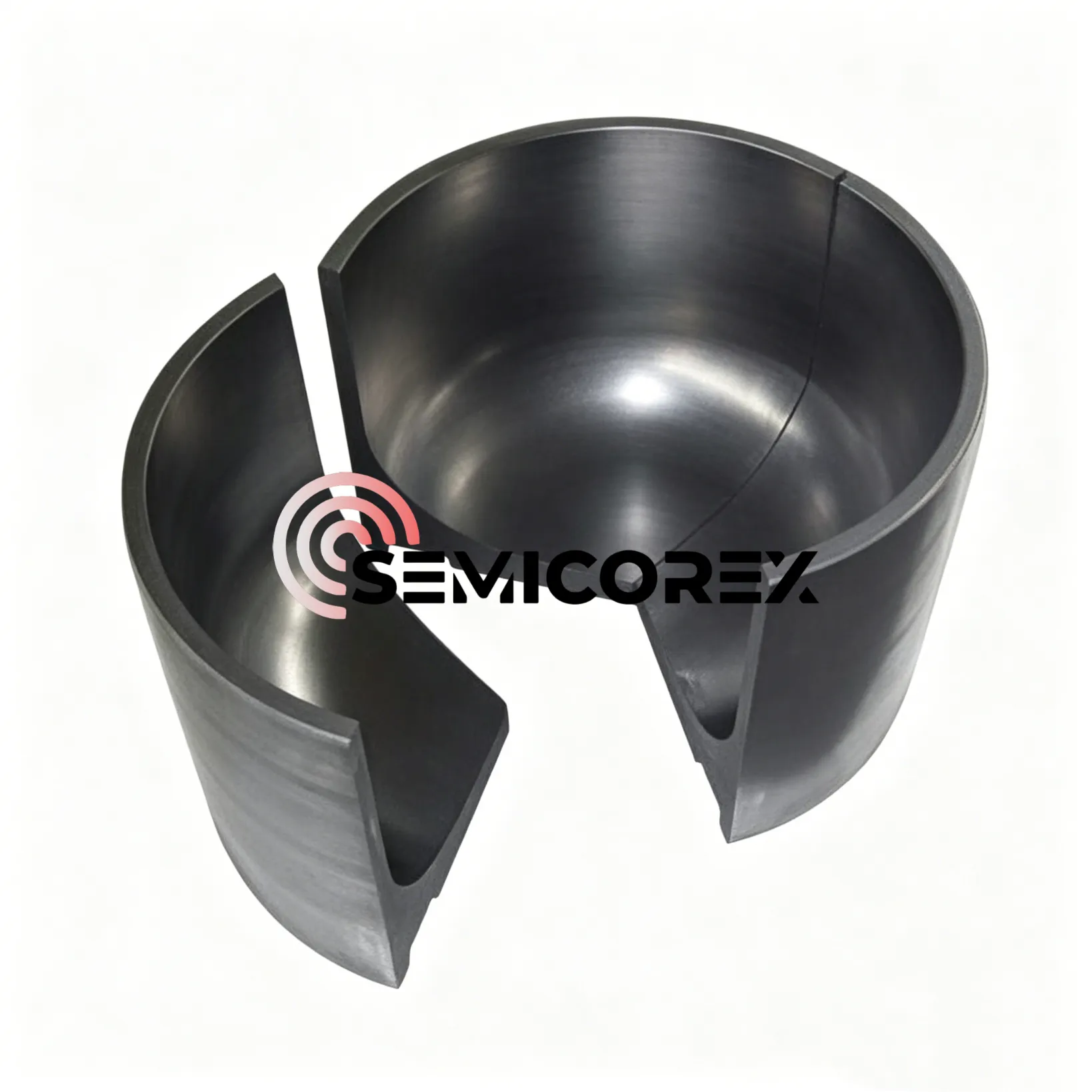

Cawan grafit

Cawan grafit

Cacaran grafit semikorex yang direkayasa untuk stabilitas termal yang luar biasa dan kontrol kontaminasi dalam proses pertumbuhan kristal semikonduktor. Pilih celah grafit kami untuk kemurnian, kinerja, dan keandalan yang tak tertandingi dalam pertumbuhan kristal semikonduktor. *

Baca selengkapnyamengirimkan permintaan
Chuck grafit

Chuck grafit

Semicorex Graphite Chuck adalah komponen penting dalam manufaktur Polysilicon, yang banyak digunakan dalam industri surya. Dengan meningkatnya permintaan wafer silikon dengan kemurnian tinggi, kebutuhan akan alat pemrosesan kinerja tinggi seperti chuck grafit telah menjadi penting. Diproduksi dari grafit khusus dengan kemurnian tinggi, chuck grafit kami dirancang untuk menahan suhu ekstrem, paparan kimia, dan tekanan mekanis sambil menjaga stabilitas dimensi.*

Baca selengkapnyamengirimkan permintaan
Rotor dan Poros Grafit

Rotor dan Poros Grafit

Rakitan rotor dan poros grafit semicorex adalah bagian penting yang banyak digunakan untuk degassing dalam peleburan aluminium dan paduan aluminium.

Baca selengkapnyamengirimkan permintaan
Semicorex telah memproduksi Grafit isostatik selama bertahun-tahun dan merupakan salah satu produsen dan Pemasok Grafit isostatik profesional di China. Setelah Anda membeli produk kami yang canggih dan tahan lama yang memasok kemasan massal, kami menjamin jumlah besar dalam pengiriman cepat. Selama bertahun-tahun, kami telah menyediakan pelanggan dengan layanan yang disesuaikan. Pelanggan puas dengan produk kami dan layanan terbaik. Kami dengan tulus berharap untuk menjadi mitra bisnis jangka panjang Anda yang andal! Selamat datang untuk membeli produk dari pabrik kami.
